300zx Transmission Removal And Installation

Posted On Wed Sep 05, 2007 By zcar In Blogs About Many Topics That Are Interesting For Discussion In Forums Forums

so how do you remove a transmission from your z?
a 1996 300zx and i have a 5 speed manual transmision i need to remove in onder to change the clutch. according to the manual, you have to do this:

Removal

CAUTION:
When removing the transmission assembly from engine, first remove the crankshaft position sensor (OBD) from the assembly. Be careful not to damage sensor edge and ring gear teeth.

Remove exhaust tube.
remove support bracket from M/T assembly
Remove control rod from control lever.
Remove propeller shaft.
Insert plug into read oil seal after removing propeller shaft.
Be careful not to damage spline, sleeve yoke and rear oil seal when removing propeller shaft
disconnect backup lamp switch, neutral position switch and vehicle speed sensor harness connections.
Remove clutch operating cylinder from transmission
Support manual transmission with a jack.
Remove rear mounting bracket.
Lower manual transmission as much as possible.
Remove transmission fixing bolts.
Remove transmission from engine.
Support manual transmission while removing it.

Bolt Installation - tighten all transmission bolts:

39-49
39-49
39-49
29-39
39-49
29-39
39-49

the hardest thing to do is to remove the top bolts, circled in this picture, but i was able to remove mine

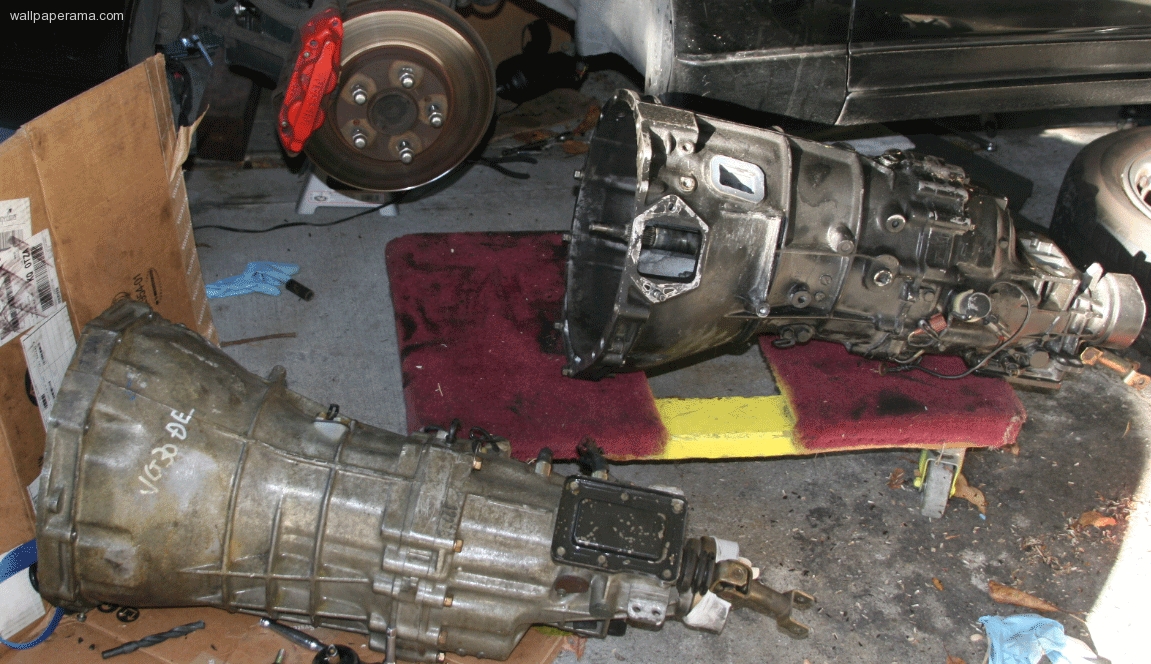

my car

Cam Fri Jul 29, 2011

How do you install the sleeve cylinder?

Jeffrey Thu Apr 14, 2011

The top left is the hardest to reach. I use 2 20" extensions and a universal and go over the top of the transmission to reach it. A helper will make this much easier. The Top right one you should be able to use a ratchet with no extension or a Wrench to remove. You can also try and go over the top of the transmission with the long extensions but I did not have to on mine. If the transmission has not been removed in a long time, these will be very tight! I have to use a breaker bar to get mine loose. Good Luck!

vince Sat Apr 09, 2011

how do you removing the top bolts on transmission nissan 300zx
